Toyota 78 Land Cruiser 3900kg GVM Upgrade

West Coast Suspension is now authorised under Federal approval number 47230 to supply and fit a GVM suspension upgrade for the Toyota 78 Series Land Cruiser Personnel Carrier to 3900kg GVM. This enables the operator to legally carry 500kg-600kg over the factory stipulated GVM.

This kit has been ESC tested by Bosch Australia and complies with the ADR 35-05 “Sine with Dwell” requirements and fully certified under RVCS (Road Vehicle Certification System) by the federal Dept. of Infrastructure and Regional Development.

Each GVM suspension upgrade is issued with a silver modification compliance plate fitted next to the OEM compliance plate, stating vehicle particulars and approval number issued as Second Stage Manufacture. The suspension modification and fixing of the silver modification plate must be done prior to any other modifications and must be done prior to the vehicle being licensed.

For vehicles that have already been road registered, the process varies from state to state. The vehicle may be required to be inspected by an authorised Automotive Engineer in that state to be issued with a compliance certificate.

Please be aware that these kits must be fitted by a DOTARS approved manufacturing facility.

All relevant application and approval forms for vehicle particulars will be available from West Coast Suspension staff at time of purchase

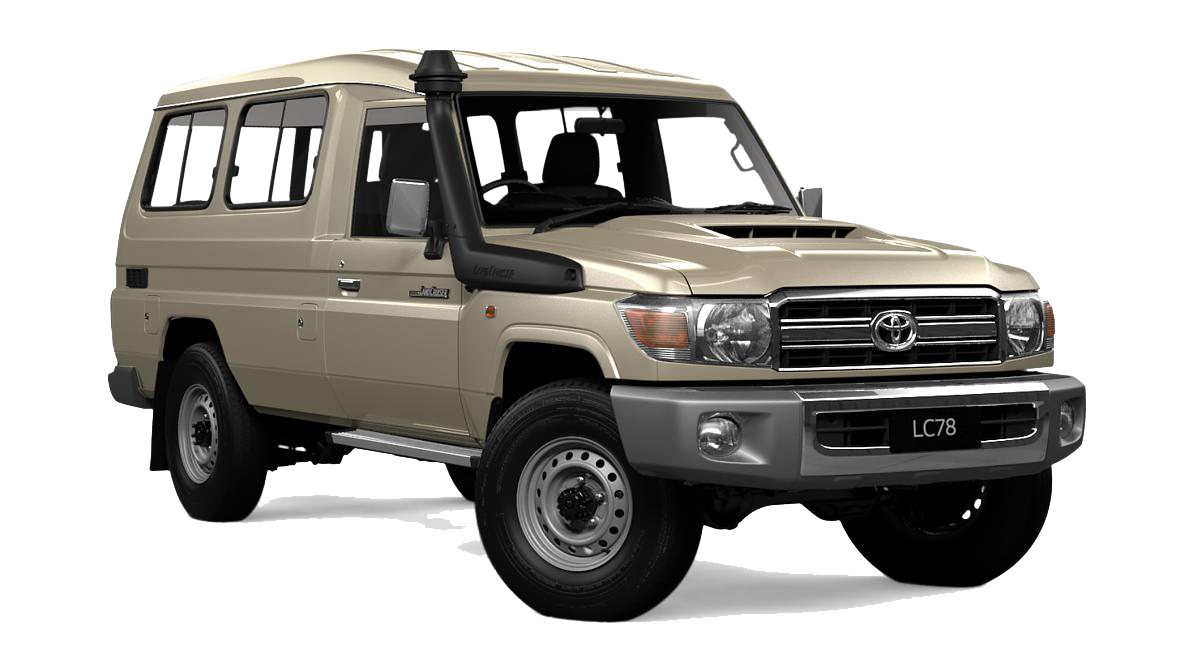

Fully Loaded vehicle image

Suspension kit consists of:

  • 2 Front coil springs
  • 2 Rear leaf springs
  • 2 Front shock absorbers
  • 2 Rear shock absorbers
  • 4 U-Bolts
  • 1 Shackle bush kit
  • 2 Swinging shackles
  • 2 Fixed pins
  • 1 Brake valve spacer block
  • 1 Silver SSM Compliance plate
  • 1 GVM tyre placard
  • 2 Category 6 side indicators

This kit also requires Category 6 side indicators to be fitted to the vehicle before it is presented for licensing.
