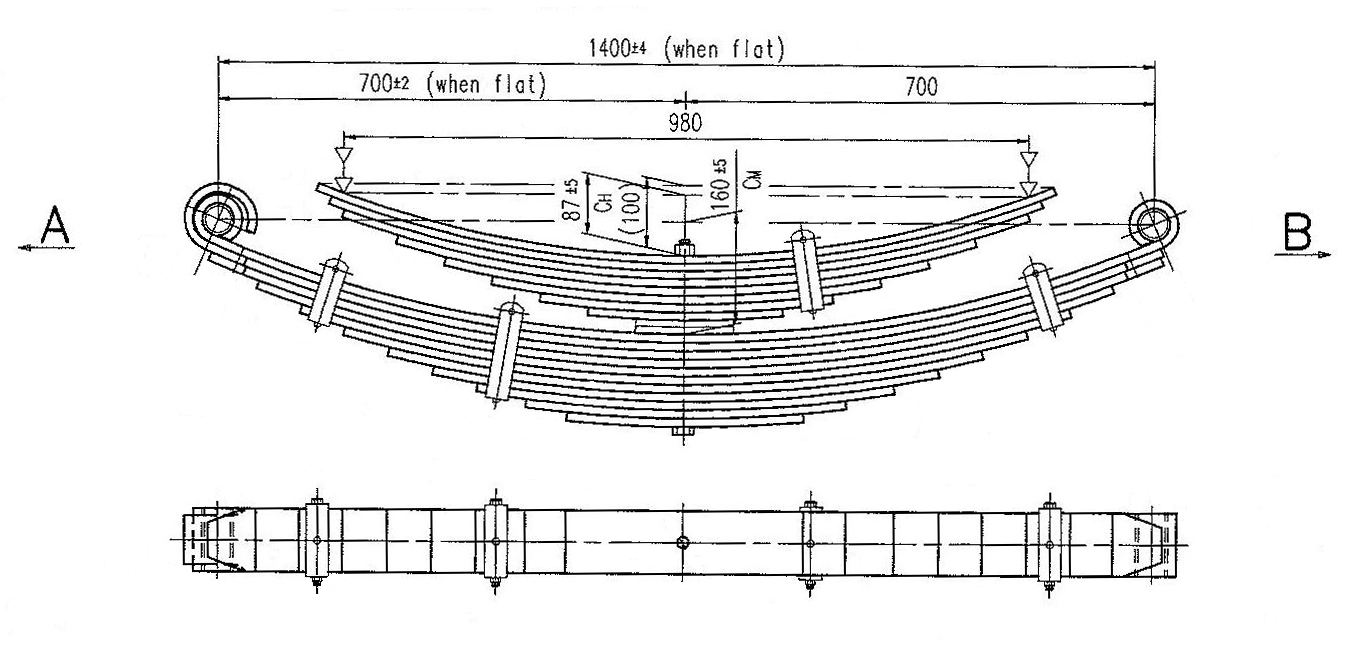

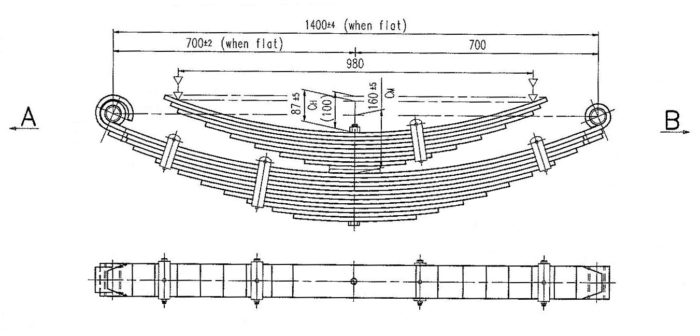

HIN-26 multileaf leaf spring diagram with dimensions, ideal for suspension system analysis and engineering reference.

in stock

HIN-26 – Multileaf Leaf Spring

Categories: Truck, All Years, HINO, FG1J RANGER 9

Bush Front: 3082

Bush Rear: 3082

C/Bolt: 5166

Leaf A Dim (mm): 700

Leaf B Dim (mm): 700

Main Pack Mat.: 90X12-11-10

No. Leaves: M=11/J=8+2PP

Suspension Type: Drive

Makes:

Models:
